The A/C amplifier might sound like a part of your stereo, but it’s actually a crucial component of your Sienna’s HVAC system. It’s the brains behind your climate control sending commands to the blower motor, relays, and actuators based on your input and sensor data.
Why You Might Need to Locate It
If your A/C isn’t working right like if it’s blowing hot air, the blower isn’t coming on, or your climate controls are acting strange the A/C amplifier could be the culprit. But before you can fix or replace it, you’ve got to know where it is.
What Is an A/C Amplifier?
Function in the HVAC System
Think of it like the climate control’s CPU. The A/C amplifier gathers input from temperature sensors, the cabin control panel, and other modules, then tells your HVAC components how to behave.
Signs of a Failing A/C Amplifier
-
A/C not turning on at all
-
Inconsistent or no airflow
-
Unresponsive control panel
-
Blower motor speed stuck or non-functional
Tools You’ll Need for Access
-
Phillips and flathead screwdrivers
-
10mm socket with ratchet
-
Trim removal tool
-
Flashlight or work light
-
Optional: Multimeter, OBD-II scanner
Safety First!
Disconnecting the Battery
Always disconnect the negative battery cable before working with electronic components. It’ll save your circuits and your fingers.
Avoiding Static Damage
Wear an anti-static wrist strap if possible, or at least ground yourself by touching metal. The amplifier is sensitive to static electricity.
Locating the A/C Amplifier in the 2012 Toyota Sienna 3.5L
Step-by-Step Breakdown
Step 1: Prepare Your Work Area
Make sure your van is parked in a shaded, flat area with enough space to open the passenger-side doors. You’ll be working mostly under and behind the glove box.
Step 2: Remove Lower Dash Panels
Start by removing the lower glove box trim panel. Use a trim removal tool to gently pop off the clips no need to force it. Next, remove any screws holding the glove box in place and carefully lower it out of the way.
Step 3: Identify the A/C Amplifier Module

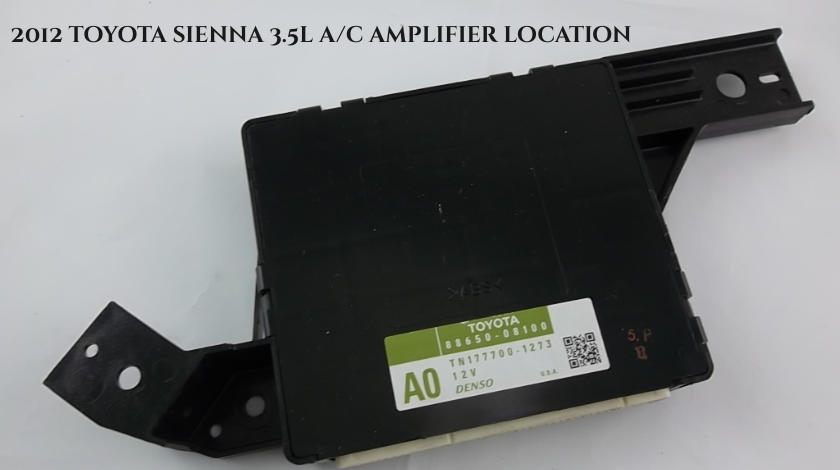

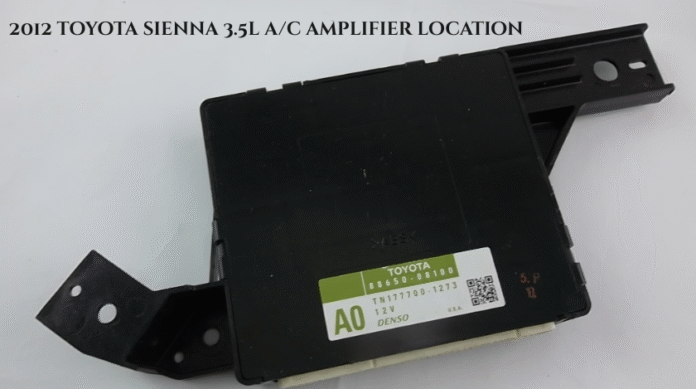

The amplifier is a small, rectangular electronic unit, often silver or black, with one or more multi-pin connectors plugged into it. You’ll usually find it mounted just behind the glove box on the HVAC housing slightly to the right side.
A/C Amplifier Location Explained
Behind the Glove Box
The 2012 Sienna places its A/C amplifier right behind the glove box compartment, secured to the HVAC case. It’s easily accessible once the glove box is removed.
Mounted on HVAC Housing
Look for it near the blend door actuator or blower motor these components all interact through the amplifier. It’s usually held in place with one or two screws.
How to Replace the A/C Amplifier
Unplugging the Connectors
Once you locate the module, unplug the wiring connectors. Some clips can be tight don’t yank, use a small flathead to release tabs.
Installing the New Unit
Mount the replacement in the same spot, tighten screws, and reconnect the wiring harness. Reverse your steps to reinstall the glove box and trim.
Programming or Resetting After Replacement
Does It Need Reprogramming?
In most cases, no reprogramming is necessary. However, if your Sienna has automatic climate control or additional electronic HVAC features, a reset may be needed using a scan tool.
Clearing HVAC Error Codes
Use an OBD-II scanner to clear any stored DTCs (Diagnostic Trouble Codes) after the install. This ensures smooth operation.
Common Symptoms Related to a Faulty A/C Amplifier
-
A/C turns off randomly
-
No fan/blower response
-
Airflow stuck on one mode (like defrost only)
-
Control panel lighting up but doing nothing
OEM vs Aftermarket Amplifier Units
Pros and Cons of Each
-
OEM: Guaranteed fit and function, but more expensive
-
Aftermarket: Cheaper, may lack durability or compatibility
Where to Buy Reliable Parts
Check Toyota dealerships, trusted auto parts stores, or online retailers like RockAuto, eBay Motors, or AutoZone.
Cost Estimate for DIY vs Mechanic
-
DIY Parts Only: $80–$150 (depending on OEM vs aftermarket)
-
Mechanic Repair: $250–$400+ with labor
-
Time Required: 30 to 60 minutes for a novice
Troubleshooting Tips Before Replacement
-
Check HVAC fuses
-
Inspect wiring for corrosion or looseness
-
Scan for error codes before replacing the amplifier
-
Make sure blower motor and relays are functioning properly
When to Consult a Professional
If you’ve done the basics and your HVAC still acts up or if you’re not comfortable messing with electronics call a trusted mechanic. Electrical gremlins can get expensive if misdiagnosed.
Conclusion
The A/C amplifier in your 2012 Toyota Sienna 3.5L may be small, but it plays a massive role in keeping your van comfortable. Knowing where it’s located and how to access it gives you the power to diagnose and possibly fix annoying HVAC problems yourself. With a bit of patience, the right tools, and a little know-how, you can save money and stay cool on the road.
FAQs
1. Where exactly is the A/C amplifier located in a 2012 Sienna?
It’s located behind the glove box, mounted to the HVAC housing on the passenger side.
2. Can I drive with a faulty A/C amplifier?
Yes, but your climate controls may not function properly, which could be uncomfortable in extreme weather.
3. Does the amplifier affect heat and A/C?
Yes. It controls both heating and cooling functions through the HVAC system.
4. How long does it take to replace it?
It typically takes about 30 to 60 minutes for someone with basic DIY skills.
5. Do I need to reprogram the system after installing a new amplifier?
Usually not. Most amplifiers are plug-and-play unless your Sienna has advanced climate features requiring reset via scan tool.
